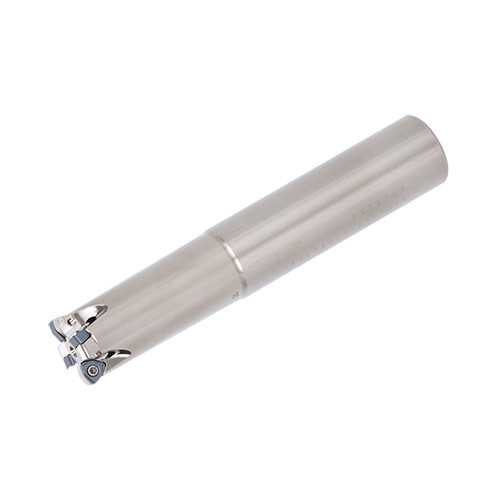

Głowica EXWX03M020C20.0R03
2108,33 zł
Specyfikacja produktu

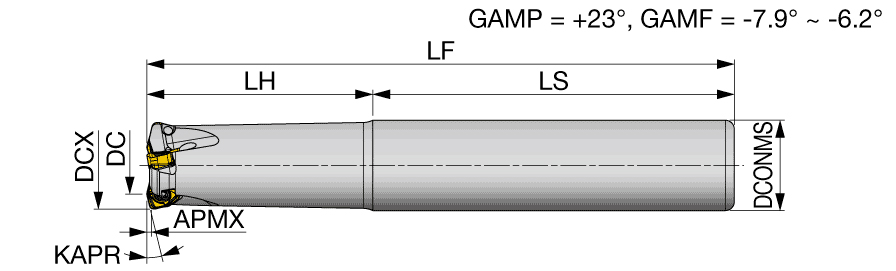

| Cutting Diameter (DC/DCX) | 12.8 mm | Head Length (LH) | 50 mm |
| Cutting Diameter (DC) | 12.8 mm | Functional Length (LF) | 130 mm |
| Cutting Item Count (CICT) | 3 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 1 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Overall Length (OAL) | 130 mm | Rodzaj pomiaru | Metric |
| Rodzaj cholewki | Round | Materiał ciała | Steel |
| Aplikacja | | High Feed Milling | | Cutting Diameter Maximum (DCX) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Jednostka | M |
| Master Insert Identification (MIID) | WXMU0303ZER-MM |
