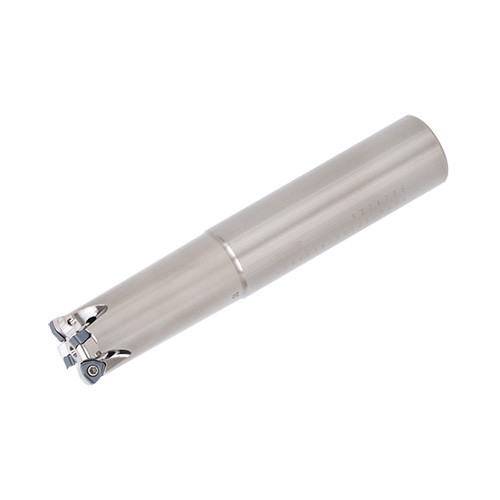

Głowica EXWX03M016C16.0R02
1687,16 zł
Specyfikacja produktu

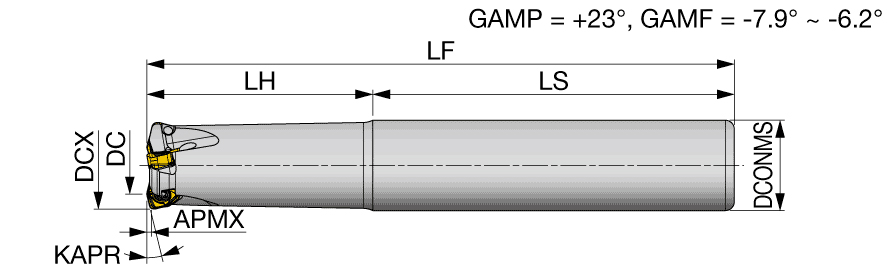

| Cutting Diameter (DC/DCX) | 8.9 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 8.9 mm | Functional Length (LF) | 100 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 1 mm | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Overall Length (OAL) | 100 mm | Rodzaj pomiaru | Metric |
| Rodzaj cholewki | Round | Materiał ciała | Steel |
| Aplikacja | | High Feed Milling | | Cutting Diameter Maximum (DCX) | 16 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Jednostka | M |
| Master Insert Identification (MIID) | WXMU0303ZER-MM |
