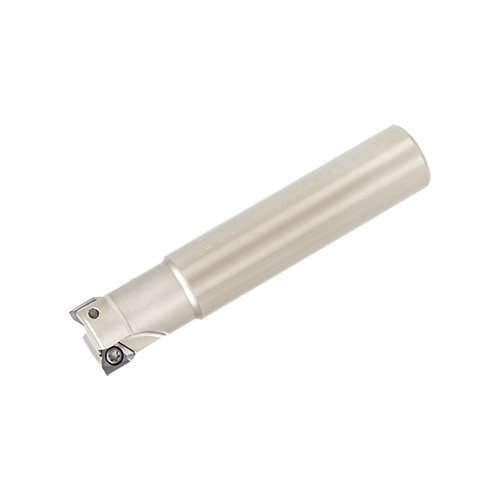

Głowica EPA06R016M16.0-02N
1524,78 zł

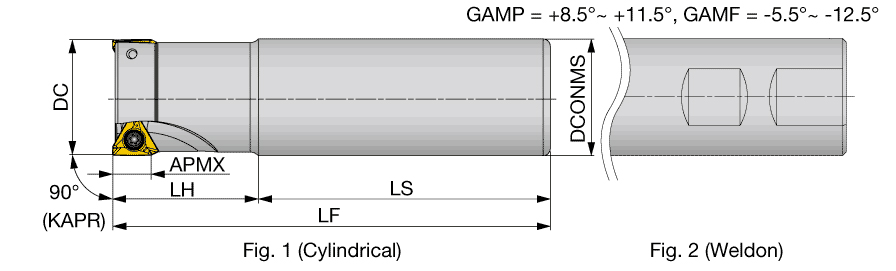

Specyfikacja produktu
| Cutting Diameter (DC/DCX) | 16 mm | Head Length (LH) | 24 mm |
| Cutting Diameter (DC) | 16 mm | Functional Length (LF) | 84 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 84 mm | Rodzaj pomiaru | Metric |
| Rodzaj cholewki | Round | Materiał ciała | Steel |
| Aplikacja | | Shoulder Milling | | Shank Length (LS) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Diameter Maximum (DCX) | 16 mm |
| Master Insert Identification (MIID) | TOMT060304PDER-MJ | Jednostka | M |
